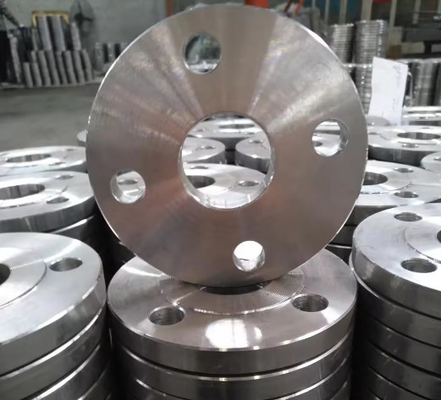

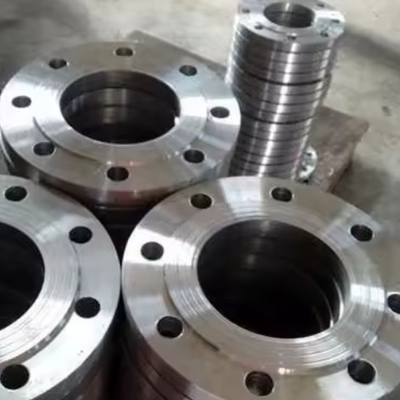

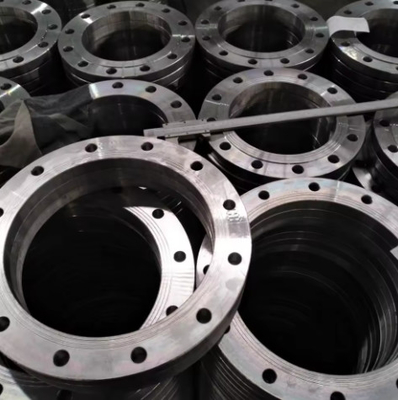

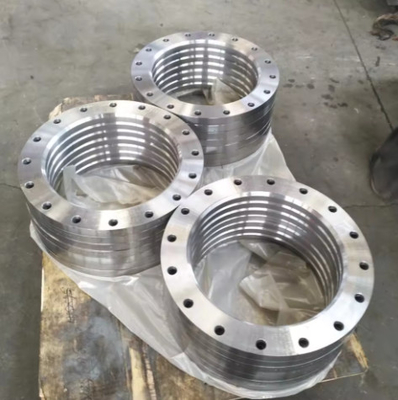

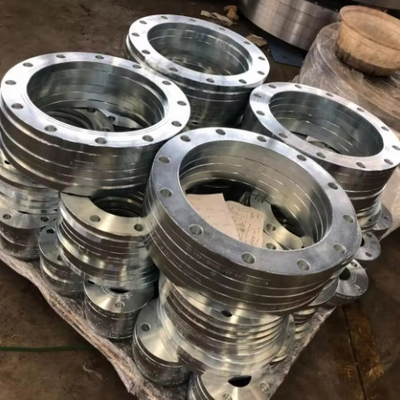

1/2'' to 84inch S235JR Steel Flanges EN10025-2 Forged Flange for Poland
| Place of Origin | china |
|---|---|
| Brand Name | OK |
| Certification | CE |
| Model Number | 1/2‘’-84'' |
| Minimum Order Quantity | 1 pcs |
| Price | USD |
| Packaging Details | Standard exprorted packing |
| Delivery Time | 5-8 WORKING DAYS |
| Payment Terms | D/A, L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 1/2‘’ To 84inch | Standard | En10253-2 |
|---|---|---|---|
| Type | Steel Forged Flange | Keyword | 1.0038 |
| High Light | EN10025-2 Steel Flanges,Poland Steel Flanges,84inch Steel Flanges |
||
Product Description
S235JR forged flanges, crafted from the widely recognized grade 1.0038 steel, represent a significant component in industrial applications requiring high-quality flange connections. Manufactured according to EN10025-2 standards, these forged flanges ensure reliability and durability for various mechanical and structural needs.
The process of forging enhances the strength of the S235JR steel, making it an ideal choice for heavy-duty usage where performance under pressure is paramount. As a result, these steel flanges are not only robust but also offer excellent resilience against wear and tear.
In recent developments, the Polish market has seen an influx of these top-tier S235JR forged flanges. This export activity highlights Poland’s growing demand for superior-grade steel components that can meet the rigorous requirements of its engineering and construction sectors.
Overall, S235JR forged flanges stand out for their unmatched quality and performance in critical infrastructural projects. Their adaptability to various conditions makes them a preferred choice among professionals seeking reliable solutions in steel construction and machinery assembly across borders.
| Grade : | S235JR | |
| Number: | 1.0038(dubl) | |
| Classification: | Non-alloy quality structural steel ??? According EN 10250-2:2000 steel S235JRG2 also named 1.0038 ??? |
|
| Standard: |
|
Chemical composition % of steel S235JR (1.0038(dubl)): EN 10025-2-2004
| Nominal thickness =< 40(mm) C max = 0.17 Nominal thickness =< 40(mm) CEV max = 0.35 |
| C | Mn | P | S | N | Cu | CEV |
| max 0.2 | max 1.4 | max 0.04 | max 0.04 | max 0.012 | max 0.55 | max 0.38 |
Mechanical properties of steel S235JR (1.0038(dubl))
| Nominal thickness (mm): | to 3 | 3 - 100 | 100 - 150 | 150 - 250 |
| Rm - Tensile strength (MPa) Flat and long products | 360-510 | 360-510 | 350-500 | 340-490 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 100 | 100 - 150 | 150 - 200 | 200 - 250 |
| ReH - Minimum yield strength (MPa) Flat and long products | 235 | 225 | 215 | 215 | 215 | 195 | 185 | 175 |
| KV - Impact energy (J) longitud., | -20° 27 |
0° 27 |
+20° 27 |
| Nominal thickness (mm): | to 1 | 1 - 1.5 | 1.5 - 2 | 2 - 2.5 | 2.5 - 3 |
| A - Min. elongation Lo = 80 mm (%) parallel, | 17 | 18 | 19 | 20 | 21 |
| Nominal thickness (mm): | 3 - 40 | 40 - 63 | 63 - 100 | 100 - 150 | 150 - 250 |
| A - Min. elongation Lo = 5,65 √ So (%) parallel, | 26 | 25 | 24 | 22 | 21 |
