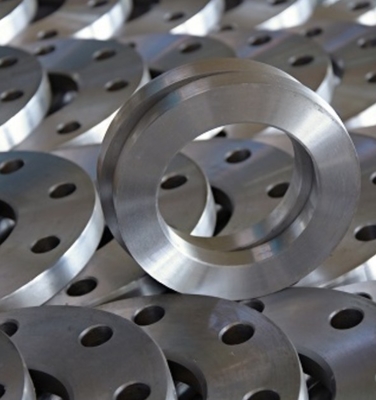

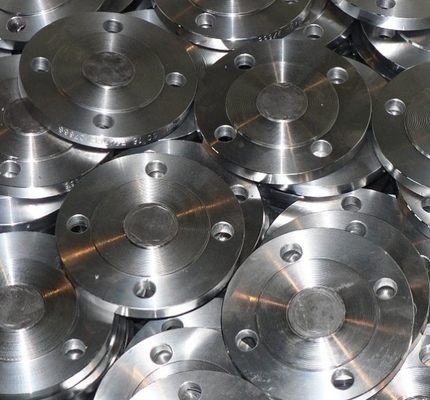

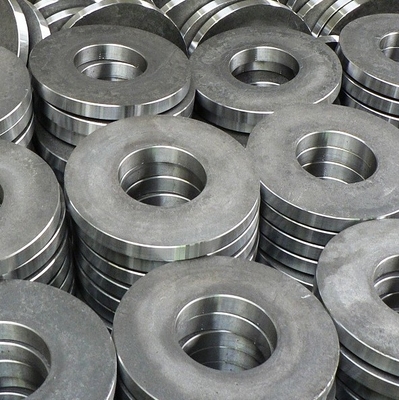

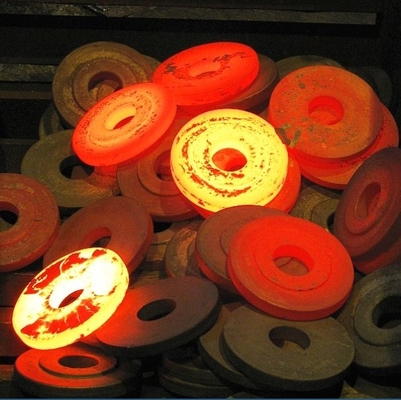

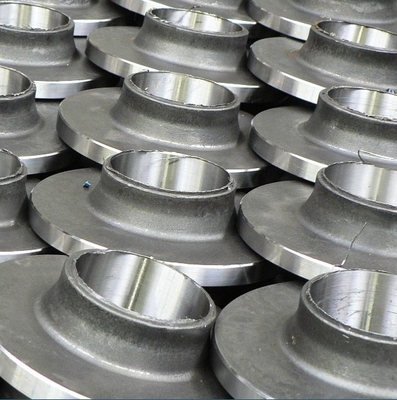

Duplex 2507 F53 Forged Steel Flange DIN2565/2566/2567/2568/2569 ASTM A182 S32750 1.4410

  • Duplex 2507 F53 Forged Steel Flange DIN2565/2566/2567/2568/2569 ASTM A182 S32750 1.4410
  • Duplex 2507 F53 Forged Steel Flange DIN2565/2566/2567/2568/2569 ASTM A182 S32750 1.4410
  • Duplex 2507 F53 Forged Steel Flange DIN2565/2566/2567/2568/2569 ASTM A182 S32750 1.4410
  • Duplex 2507 F53 Forged Steel Flange DIN2565/2566/2567/2568/2569 ASTM A182 S32750 1.4410
  • Duplex 2507 F53 Forged Steel Flange DIN2565/2566/2567/2568/2569 ASTM A182 S32750 1.4410
Place of Origin China
Brand Name OK
Certification CE
Model Number 1/2'' TO 80INCH
Minimum Order Quantity 1 pcs
Price 0.3 usd/pcs
Packaging Details standard exported packages
Delivery Time 5-8 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 pcs in stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 11 375.1, S235, P245GH, P265GH Standard DIN2565/2566/2567/2568/2569
CE Standard Standard EN1092-1 TYPE01 Packaging Details By Wooden Cases/pallets
High Light

DIN 2568/2569 Duplex Flange

,

A182 S32750 Duplex Flange

,

DIN2565/2566/2567 forged steel Flange
Leave a Message
Product Description
Grade :X2CrNiMoN25-7-4
Number:1.4410
Classification:Austenitic-ferritic stainless steel - special grade
Density:7.8 g/cm ³
Standard:
EN 10088-2: 2005 Stainless steels. Technical delivery conditions for sheet/plate and strip of corrosion resisting steels for general purposes
EN 10088-3: 2005 Stainless steels. Technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products of corrosion resisting steels for general purposes
EN 10028-7: 2007 Flat products made of steels for pressure purposes. Stainless steels
EN 10222-5: 2000 Steel forgings for pressure purposes. Martensitic, austenitic and austenitic-ferritic stainless steels
EN 10216-5: 2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Stainless steel tubes
EN 10217-7: 2005 Welded steel tubes for pressure purposes. Stainless steel tubes
EN 10296-2: 2005 Welded circular steel tubes for mechanical and general engineering purposes. Stainless steel. Technical delivery conditions
EN 10253-3: 2008 Butt-welding pipe fittings. Wrought austenitic and austenitic-ferritic (duplex) stainless steels without specific inspection requirements
EN 10253-4: 2008 Butt-welding pipe fittings. Wrought austenitic and austenitic-ferritic (duplex) stainless steels with specific inspection requirements
EN 10272: 2007 Stainless steel bars for pressure purposes
EN 10250-4: 2000 Open steel die forgings for general engineering purposes. Stainless steels
EN 10297-2: 2005 Seamless circular steel tubes for mechanical and general engineering purposes. Stainless steel. Technical delivery conditions
EN 10088-1: 2005 Stainless steels. List of stainless steels
EN 10088-5: 2009 Stainless steels. Technical delivery conditions for bars, rods, wire, sections and bright products of corrosion resisting steels for construction purposes
EN 10088-4: 2009 Stainless steels. Technical delivery conditions for sheet/plate and strip of corrosion resisting steels for construction purposes



Chemical composition % of steel X2CrNiMoN25-7-4 (1.4410): EN 10088-2-2005
Elements not listed in this table shall not be intentionally added to the steel without the agreement of the purchaser except for finishing the cast.
CSiMnNiPSCrMoN
max 0.03max 1max 26 - 8max 0.035max 0.01524 - 263 - 4.50.24 - 0.35

Mechanical properties of steel X2CrNiMoN25-7-4 (1.4410)

Rm - Tensile strength (MPa) (+A)730-1000
Rm - Tensile strength (MPa) (+AT)800-1000

Rp0.2 0.2% proof strength (MPa) (+A)530-550
Rp0.2 0.2% proof strength (MPa) (+AT)500-550

KV - Impact energy (J) transverse, (+A)+20°
90		-40°
40
KV - Impact energy (J) longitud., (+A)+20°
100-150
KV - Impact energy (J) transverse, (+AT)+20°
100		-40°
40
KV - Impact energy (J) longitud., (+AT)+20°
100-200

A - Min. elongation at fracture (%) (+A)15-25
A - Min. elongation at fracture (%) longitud., (+AT)20

Brinell hardness (HB): (+A)290
Brinell hardness (HB): (+AT)310

Properties of steel X2CrNiMoN25-7-4 (1.4410)
Resistance to intergranular corrosion: in the delivery condition - yes; in the sensitized condition - yes


Equivalent grades of steel X2CrNiMoN25-7-4 (1.4410)
Warning! Only for reference
EU
EN		USA
-		France
AFNOR		Sweden
SS
X2CrNiMoN25-7-4
S32750
Z3CND25-06Az
2328
