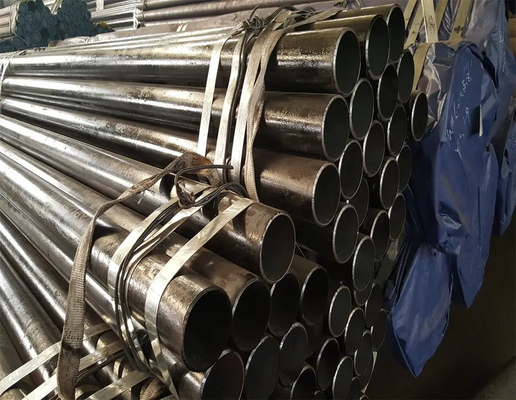

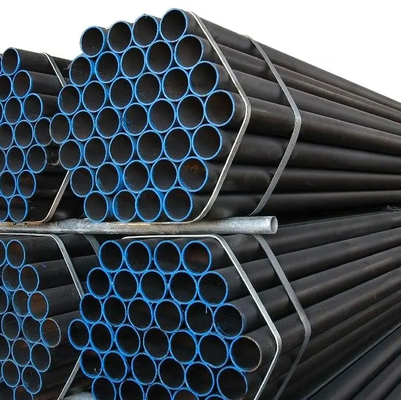

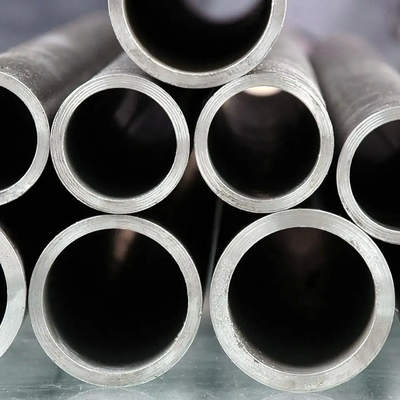

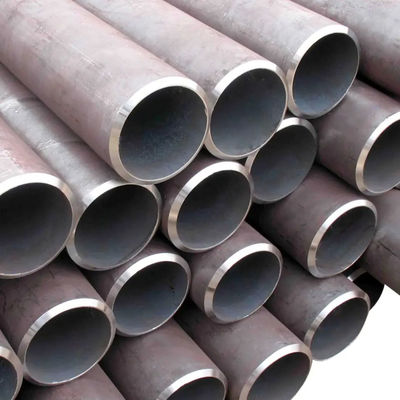

X2CrNiMoCuN 25-6-3 Alloy Steel Seamless Pipes EN 10216-5 1.4507 Alloy Steel Pipe
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | X2CrNiMoCuN 25-6-3 | Standard | EN 10216-5 |
|---|---|---|---|
| Type | Steel Alloy Seamless Pipe | Steel Number | 1.4507 |
| High Light | X2CrNiMoCuN 25-6-3 Alloy Steel Pipe,EN 10216-5 Alloy Steel Pipe,1.4507 Alloy Steel Seamless Pipes |
||
Product Description
| Grade : | X2CrNiMoCuN25-6-3 | ||||||||||
| Number: | 1.4507 | ||||||||||
| Classification: | Austenitic-ferritic stainless steel - special grade | ||||||||||
| Density: | 7.8 g/cm ³ | ||||||||||
| Standard: |
|
| Elements not listed in this table shall not be intentionally added to the steel without the agreement of the purchaser except for finishing the cast. |
| C | Si | Mn | Ni | P | S | Cr | Mo | N | Cu |
| max 0.03 | max 0.7 | max 2 | 6 - 8 | max 0.035 | max 0.015 | 24 - 26 | 3 - 4 | 0.2 - 0.3 | 1 - 2.5 |
Mechanical properties of steel X2CrNiMoCuN25-6-3 (1.4507)
| Rm - Tensile strength (MPa) (+A) | 690-1000 |
| Rm - Tensile strength (MPa) (+AT) | 700-900 |
| Rp0.2 0.2% proof strength (MPa) (+A) | 500-550 |
| Rp0.2 0.2% proof strength (MPa) (+AT) | 500 |
| KV - Impact energy (J) transverse, (+A) | +20° 90 |
-40° 40 |
| KV - Impact energy (J) longitud., (+A) | +20° 100-150 |
| KV - Impact energy (J) longitud., (+AT) | +20° 100 |
| KV - Impact energy (J) transverse, (+AT) | +20° 100 |
-40° 40 |
| A - Min. elongation at fracture (%) (+A) | 20-25 |
| A - Min. elongation at fracture (%) longitud., (+AT) | 20 |
| Brinell hardness (HB): (+A) | 270 |
| Brinell hardness (HB): (+AT) | 310 |
Properties of steel X2CrNiMoCuN25-6-3 (1.4507)
| Resistance to intergranular corrosion: in the delivery condition - yes; in the sensitized condition - yes |
