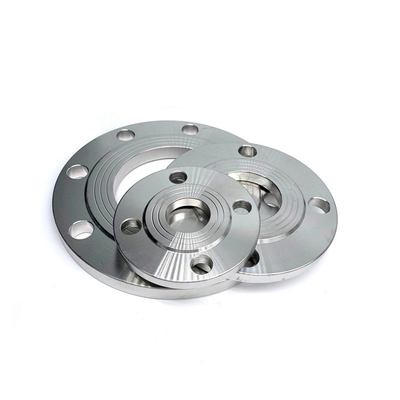

X2CrNiMo18-14-3 EN1092-1 Type 01So Flanges Stainless Steel Din 1.4435 slip on flange
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | X2CrNiMo18-14-3 | Steel Number | 1.4435 |
|---|---|---|---|
| Standard | EN1092-1 Type 01 | Type | So Flanges |
Product Description
| Grade : | X2CrNiMo18-14-3 | |||||||||||||||
| Number: | 1.4435 | |||||||||||||||
| Classification: | Austenitic stainless steel | |||||||||||||||
| Density: | 8 g/cm ³ | |||||||||||||||
| Standard: |
|
| Particular ranges of sulphur content may provide improvement of particular properties. For machinability a controlled sulphur content of 0.015 % to 0.030% is recommended and permitted. For weldability, a controlled sulphur content of 0.008 % to 0.030 % is recommended and permitted. For polishability, a controlled sulphur content of 0.015 % max is recommended. Elements not listed in this table shall not be intentionally added to the steel without the agreement of the purchaser except for finishing the cast. |
| C | Si | Mn | Ni | P | S | Cr | Mo | N |
| max 0.03 | max 1 | max 2 | 12.5 - 15 | max 0.045 | max 0.015 | 17 - 19 | 2.5 - 3 | max 0.11 |
Mechanical properties of steel X2CrNiMo18-14-3 (1.4435)
| Rm - Tensile strength (MPa) (+A) | 490-700 |
| Rm - Tensile strength (MPa) (+AT) | 490-690 |
| Rp0.2 0.2% proof strength (MPa) (+A) | 190-240 |
| Rp0.2 0.2% proof strength (MPa) (+AT) | 190-200 |
| KV - Impact energy (J) transverse, (+A) | +20° 60 |
-196° 60 |
| KV - Impact energy (J) longitud., (+A) | +20° 100 |
| A - Min. elongation at fracture (%) (+A) | 30-45 |
| A - Min. elongation at fracture (%) longitud., (+AT) | 40 |
| Brinell hardness (HB): (+A) | 215 |
| Brinell hardness (HB): (+AT) | 200 |
Properties of steel X2CrNiMo18-14-3 (1.4435)
| Resistance to intergranular corrosion: in the delivery condition - yes; in the sensitized condition - yes Steel shal not be applied at a metal temperature lower than -270 ° C |
Equivalent grades of steel X2CrNiMo18-14-3 (1.4435)
| EU EN |
USA - |
Germany DIN,WNr |
Japan JIS |
France AFNOR |
England BS |
Italy UNI |
China GB |
Sweden SS |
Czechia CSN |
Finland SFS |
Russia GOST |
Inter ISO |
|||||||||||||||
| X2CrNiMo18-14-3 |
|
|
|
|
|
|
|
|
|
|
|
|
