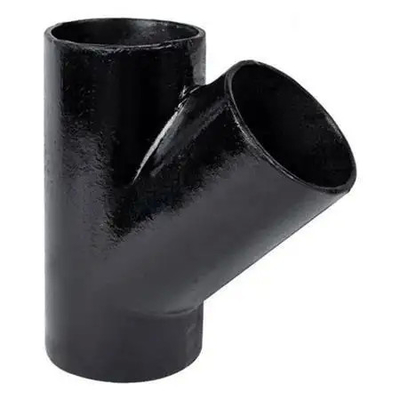

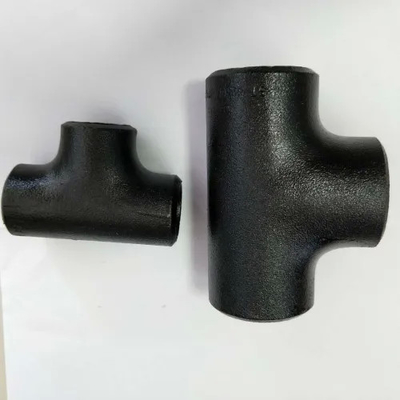

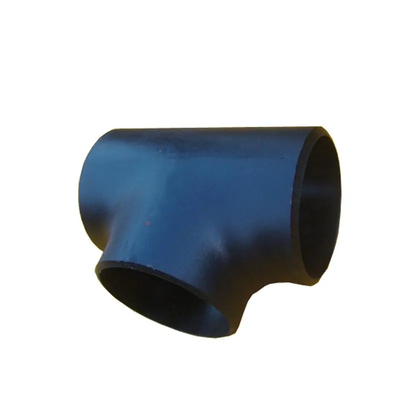

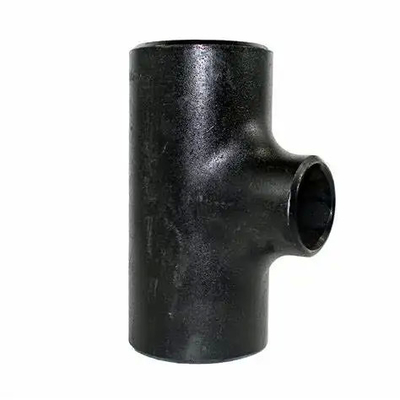

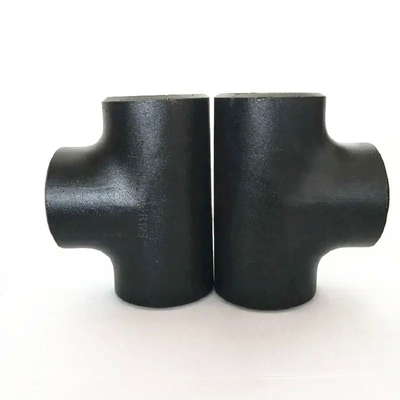

P235GH SCHEDULE 40 STANDARD STEEL PIPE FITTINGS SCH80 1.0345 ELBOW TEE CS REDUCING TEE
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | P235gh | Steel Number | 1.03545 |
|---|---|---|---|
| Standard | ASME B16.25 | Type | Steel Tee |
Product Description
P235GH SCHEDULE 40 STANDARD STEEL PIPE FITTINGS SCH80 1.0345 ELBOW TEE CS REDUCING TEE
| Grade : | P235GH | ||||||
| Number: | 1.0345 | ||||||
| Classification: | Non-alloy quality steel | ||||||
| Density: | 7.85 g/cm ³ | ||||||
| Standard: |
|
| C | Si | Mn | Ni | P | S | Cr | Mo | V | N | Nb | Ti | Al | Cu | - |
| max 0.16 | max 0.35 | 0.6 - 1.2 | max 0.3 | max 0.025 | max 0.015 | max 0.3 | max 0.08 | max 0.02 | max 0.012 | max 0.02 | max 0.03 | max 0.02 | max 0.3 | Cr+Cu+Mo+Ni < 0.7 |
Mechanical properties of steel P235GH (1.0345)
| Nominal thickness (mm): | to 100 | 100 - 150 | 150 - 250 |
| Rm - Tensile strength (MPa) (+N) | 360-480 | 350-480 | 340-480 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 60 | 60 - 100 | 100 - 150 | 150 - 250 |
| ReH - Minimum yield strength (MPa) (+N) | 235 | 225 | 215 | 200 | 185 | 170 |
| KV - Impact energy (J) transverse, (+N) | -20° 27 |
0° 27 |
+20° 40 |
| KV - Impact energy (J) longitud., | -10° 28 |
0° 40 |
+20° 47 |
| A - Min. elongation at fracture (%) (+N) | 24-25 |
Equivalent grades of steel P235GH (1.0345)
| EU EN |
USA - |
Germany DIN,WNr |
Japan JIS |
France AFNOR |
England BS |
Italy UNI |
Belgium NBN |
Spain UNE |
China GB |
Sweden SS |
Poland PN |
Czechia CSN |
Finland SFS |
Austria ONORM |
Russia GOST |
Inter ISO |
India IS |
|||||||||||||||||||||||||||||||
| P235GH |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
