Nickel Alloy 1.4558 Steel Forged Lap Joint Flanges Incoloy 800 Flange Lap Joint Flange

  • Nickel Alloy 1.4558 Steel Forged Lap Joint Flanges Incoloy 800 Flange Lap Joint Flange
  • Nickel Alloy 1.4558 Steel Forged Lap Joint Flanges Incoloy 800 Flange Lap Joint Flange
  • Nickel Alloy 1.4558 Steel Forged Lap Joint Flanges Incoloy 800 Flange Lap Joint Flange
  • Nickel Alloy 1.4558 Steel Forged Lap Joint Flanges Incoloy 800 Flange Lap Joint Flange

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 1.4558, Incoloy 800 Type Steel Forged Lap Joint Flanges
Flange Type Lap Joint Flanges Steel Number 1.4558
High Light

Steel Forged Lap Joint Flanges

,

Nickel Alloy Lap Joint Flanges
Leave a Message
Product Description

Nickel Alloy 1.4558 Steel Forged Lap Joint Flanges incoloy 800 flange Lap Joint Flange





1.4558 Forged Steel Lap Joint Flanges





Grade : X2NiCrAlTi32-20
Number: 1.4558
Classification: Austenitic corosion resisting steel
Density: 8 g/cm ³
Standard:
EN 10216-5: 2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Stainless steel tubes
EN 10297-2: 2005 Seamless circular steel tubes for mechanical and general engineering purposes. Stainless steel. Technical delivery conditions
EN 10088-1: 2005 Stainless steels. List of stainless steels





1.4558 Forged Steel Lap Joint Flanges   Chemical composition % of steel X2NiCrAlTi32-20 (1.4558): EN 10216-5-2014
C Si Mn Ni P S Cr Ti Al -
max 0.03 max 0.7 max 1 32 - 35 max 0.02 max 0.015 20 - 23 max 0.6 0.15 - 0.45 8*(C+N) < Ti < 0.6

1.4558 Forged Steel Lap Joint Flanges Mechanical properties of steel X2NiCrAlTi32-20 (1.4558)

Rm - Tensile strength (MPa) (+AT) 450-700

Rp0.2 0.2% proof strength (MPa) (+AT) 180

KV - Impact energy (J) longitud., (+AT) +20°
120
KV - Impact energy (J) transverse, (+AT) +20°
90		 -196°
60

A - Min. elongation at fracture (%) transverse, (+AT) 30
A - Min. elongation at fracture (%) longitud., (+AT) 35

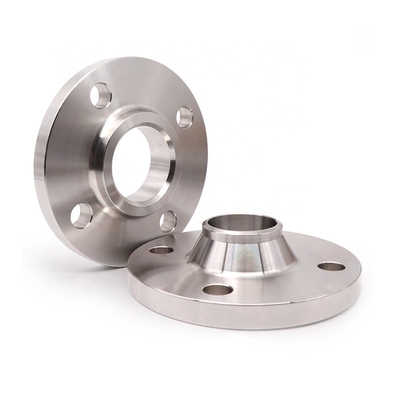

Nickel Alloy 1.4558 Steel Forged Lap Joint Flanges Incoloy 800 Flange Lap Joint Flange 0

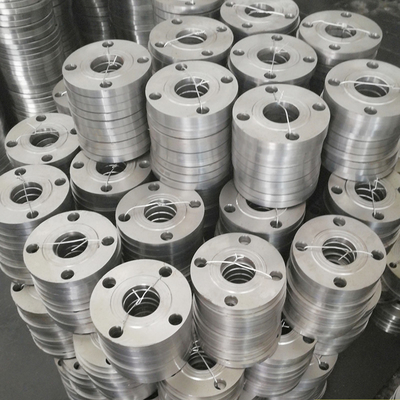

Nickel Alloy 1.4558 Steel Forged Lap Joint Flanges Incoloy 800 Flange Lap Joint Flange 1
