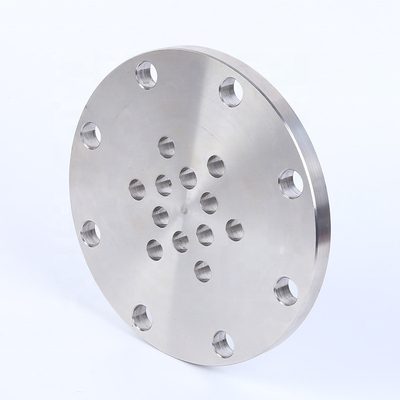

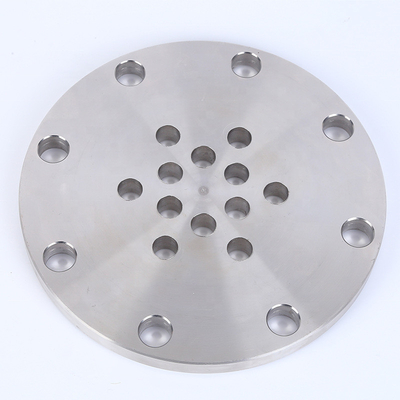

1.4539 Flange En 1092 1 Type 01 Slip On Steel Plate Flange
| Minimum Order Quantity | 1 pcs |
|---|---|
| Price | 0.3 usd/pcs |
| Packaging Details | standard exported packages |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 pcs in stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 1.4539 | China Material | X1NiCrMoCu25-20-5 |
|---|---|---|---|
| Standard | EN1092-1 Type 01 | Type | Steel Plate Flange |
| High Light | Flange En 1092 1 Type 01,Slip on Steel Plate Flange,en 1092 1 slip on flange |
||
Product Description
1.4539 Flansche/flanges EN1092-1 Type 01 Plate Flange
| Grade : | X1NiCrMoCu25-20-5 | ||||||||||||||
| Number: | 1.4539 | ||||||||||||||
| Classification: | Austenitic stainless steel | ||||||||||||||
| Density: | 8 g/cm ³ | ||||||||||||||
| Standard: |
|
1.4539 Flansche/flanges EN1092-1 Type 01 Plate Flange Chemical composition % of steel X1NiCrMoCu25-20-5 (1.4539): EN 10088-2-2005
| Elements not listed in this table shall not be intentionally added to the steel without the agreement of the purchaser except for finishing the cast. |
| C | Si | Mn | Ni | P | S | Cr | Mo | N | Cu |
| max 0.02 | max 0.7 | max 2 | 24 - 26 | max 0.03 | max 0.01 | 19 - 21 | 4 - 5 | max 0.15 | 1.2 - 2 |
1.4539 Flansche/flanges EN1092-1 Type 01 Plate Flange Mechanical properties of steel X1NiCrMoCu25-20-5 (1.4539)
| Rm - Tensile strength (MPa) (+A) | 520-730 |
| Rm - Tensile strength (MPa) (+AT) | 520-720 |
| Rp0.2 0.2% proof strength (MPa) (+AT) | 220-230 |
| Rp0.2 0.2% proof strength (MPa) (+A) | 220-260 |
| KV - Impact energy (J) transverse, (+A) | +20° 60 |
-196° 60 |
| KV - Impact energy (J) longitud., (+A) | +20° 100 |
| KV - Impact energy (J) transverse, (+AT) | +20° 90 |
-196° 60 |
| KV - Impact energy (J) longitud., (+AT) | +20° 120 |
| A - Min. elongation at fracture (%) (+A) | 30-35 |
| A - Min. elongation at fracture (%) transverse, (+AT) | 30 |
| A - Min. elongation at fracture (%) longitud., (+AT) | 35 |
| Brinell hardness (HB): (+A) | 230 |
| Brinell hardness (HB): (+AT) | 220 |
1.4539 Flansche/flanges EN1092-1 Type 01 Plate Flange Properties of steel X1NiCrMoCu25-20-5 (1.4539)
| Resistance to intergranular corrosion: in the delivery condition - yes; in the sensitized condition - yes Steel shal not be applied at a metal temperature lower than -196 ° C |
| EU EN |
USA - |
France AFNOR |
England BS |
Sweden SS |
Poland PN |
||||||
| X1NiCrMoCu25-20-5 |
|
|
|
|
|
