Round Large Stainless Steel Pipe , EN 10210-1 2006 Hot Finished Seamless Pipes

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial No | 1.0039 | Standard | EN 10210-1: 2006 , EN 10219-1: 2006 |
---|---|---|---|
Related | Steel And Pipe Epping | Price | Steel And Pipe Price List 2018 |
Name | Alberton Steel And Pipes | Section Shape | Round |
High Light | stainless steel tubing,seamless stainless steel tubing |
What's the Steel And Pipe Pretoria West With EN 10210-1: 2006 specification, Steel And Pipe Pretoria West With EN 10210-1: 2006 chemistry, Steel And Pipe Pretoria West With EN 10210-1: 2006 equivalent, Steel And Pipe Pretoria West With EN 10210-1: 2006 Mechanical Properties? Steel And Pipe Pretoria West With EN 10210-1: 2006 manufacturer in China.
Steel And Pipe Pretoria West With EN 10210-1: 2006
Chemical composition % of steel S235JRH (1.0039): EN 10210-1-2006
Method of deoxidation FN = rimming steels not permitted C < 0.17 for thickness =< 40 mm, CEV < 0.37 / 0.44 for thickness 16 / 65 mm |
C | Mn | P | S | N |
max 0.2 | max 1.4 | max 0.04 | max 0.04 | max 0.009 |
Steel And Pipe Pretoria West With EN 10210-1: 2006
Nominal thickness (mm): | to 3 | 3 - 100 | 100 - 120 |
Rm - Tensile strength (MPa) | 360-510 | 360-510 | 350-500 |
Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 100 | 100 - 120 |
ReH - Minimum yield strength (MPa) | 235 | 225 | 215 | 215 | 215 | 195 |
KV - Impact energy (J) | +20° 27 |
Nominal thickness (mm): | to 40 | 40 - 63 | 63 - 100 | 100 - 120 |
A - Min. elongation at fracture (%) longitud., | 26 | 25 | 24 | 22 |
Steel And Pipe Pretoria West With EN 10210-1: 2006
ReH | Minimum yield strength / Mindestwert der oberen Streckgrenze / Limite d elasticite minimale |
Rm | Tensile strength / Zugfestigkeit / Resistance a la traction |
A | Minimum elongation / Mindestwert der Bruchdehnung / Allongement minimal |
J | Notch impact test / Kerbschlagbiegeversuch / Essai de flexion par choc |

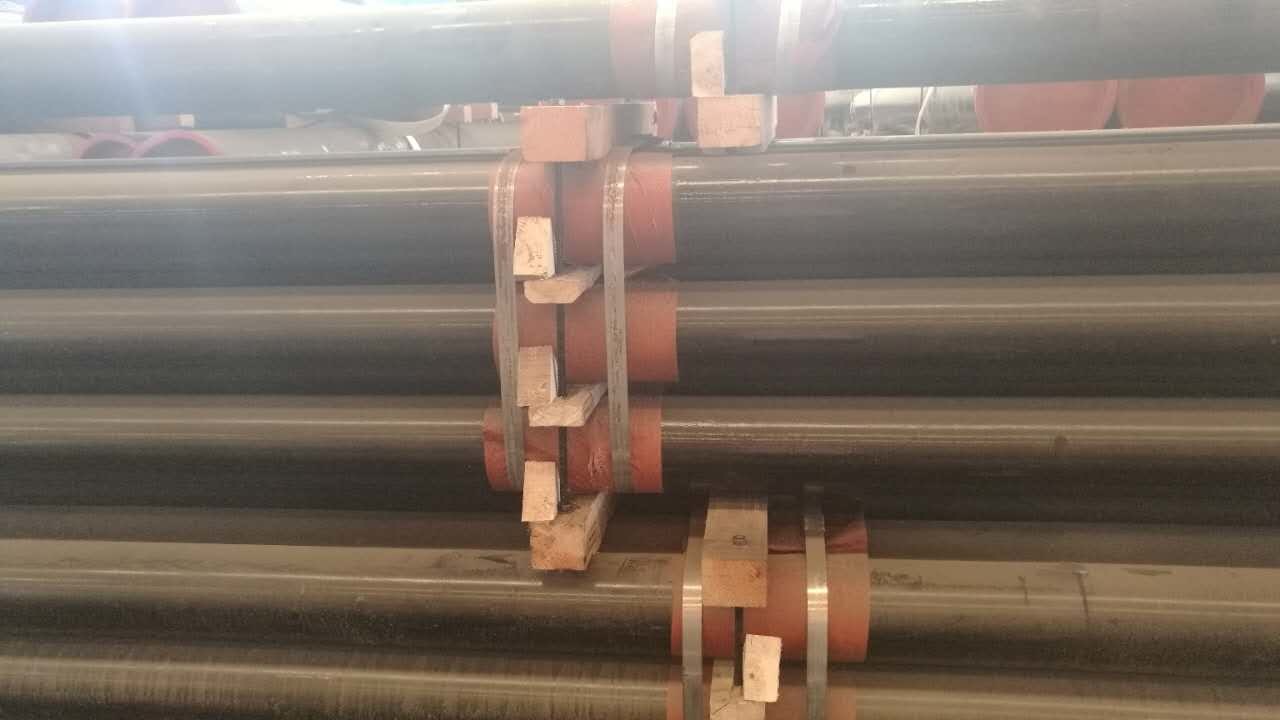

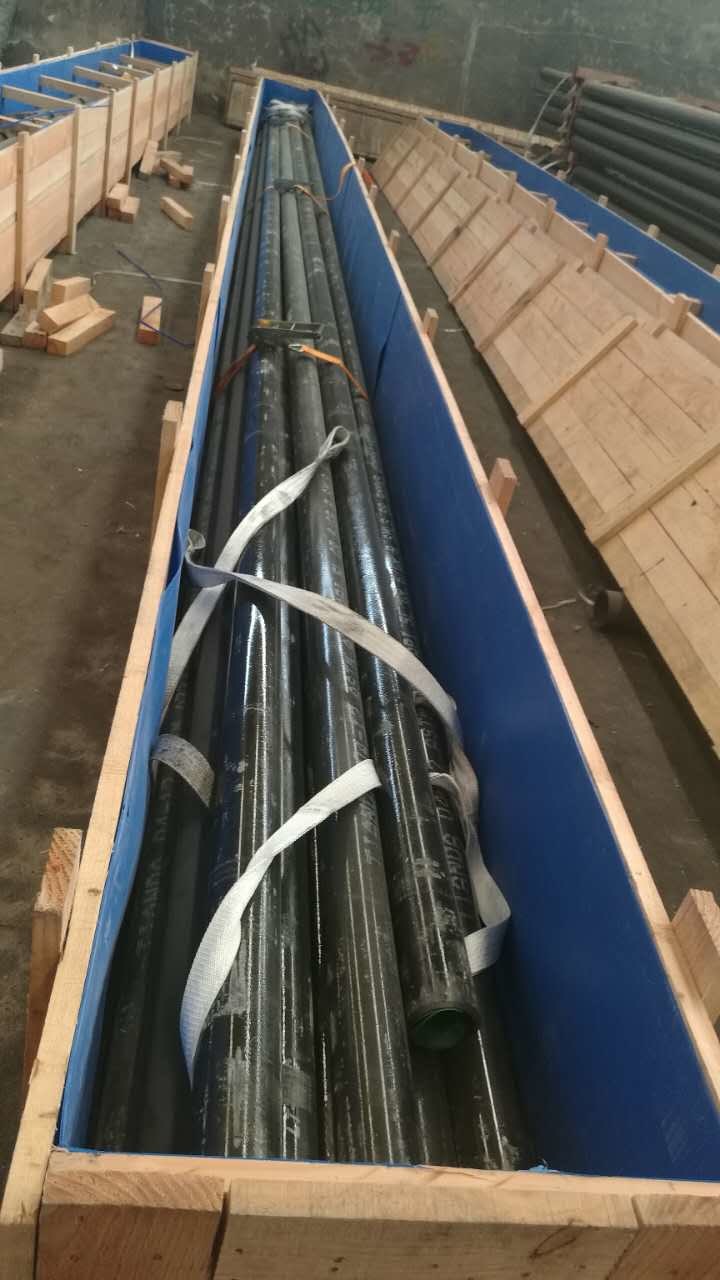

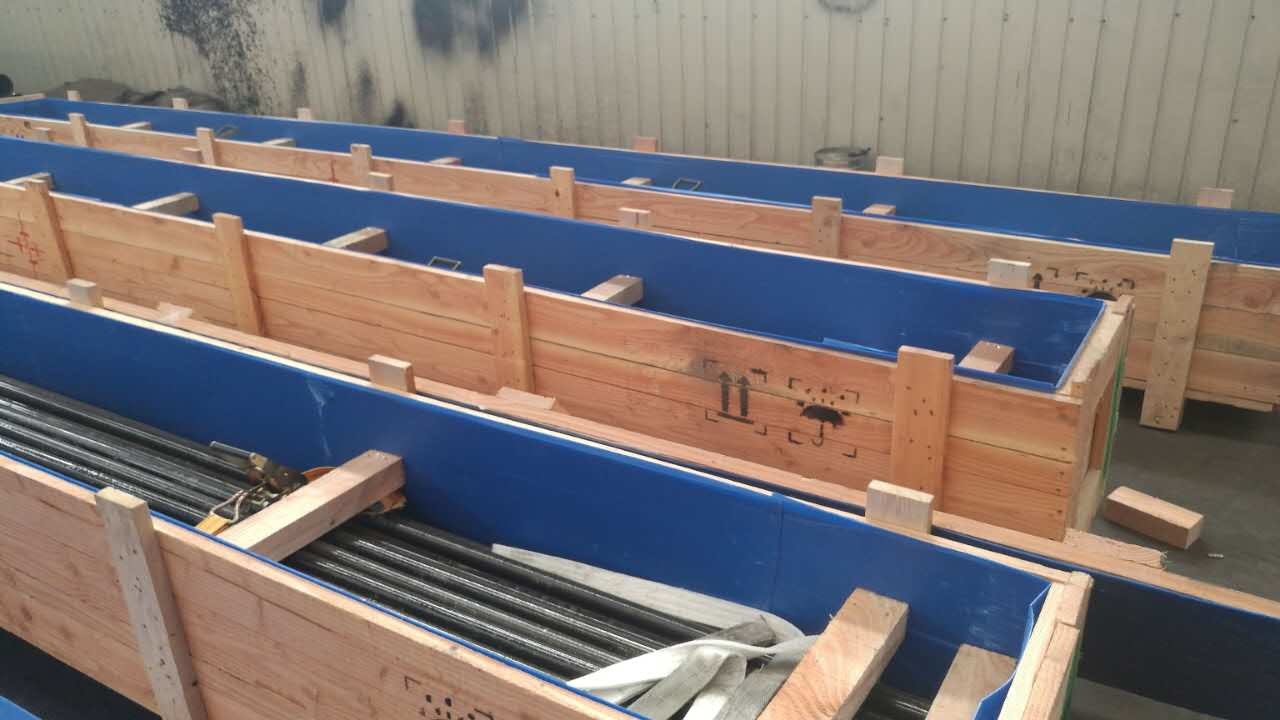

Steel And Pipe Pretoria West With EN 10210-1: 2006 Steel Pipe Package
