Heavy Wall ERW Steel Pipe EN 10219-1 EN 10219-2 EN 10025 DIN 17100 DIN 2395
| Place of Origin | China |
|---|---|
| Brand Name | Best |
| Certification | API /CE / ISO /TUV |
| Model Number | 1/2'' -48'' |
| Minimum Order Quantity | 1 TONS |
| Price | 450 USD/TON |
| Packaging Details | 1) In bundle with strip; 2) First packing by plastic bag then strip; Details packing please see the picture in the detial description. |
| Delivery Time | Shipped in 25 days after payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 100000 Ton/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | PN-EN 10305-2 | Grade | Cold Drawn Steel Tubes |
|---|---|---|---|
| Technique | E155 , E195, E235 , E275 | Finish | SAWH |
| Keyword | SAWL (longitudinal Welding) | Inspection | With Hydraulic Testing |
| Surface | Barded /Painting | ||
| High Light | erw steel line pipe,erw mild steel pipe |
||
Product Description
Production Information : HEGESZTETT ÉS VARRATNÉLKÜLI ZÁRTSZELVÉNYEK
Hegesztett és varratnélküli zártszelvényeket elsősorban raktárról kínálunk Partnereink részére S235, S275, S355
minőségekben, gyors beszerzési határidővel. Természetesen gyártásból is betudjuk szerezni ez esetbe viszont min. 24
tonna rendelési mennyiséggel kell számolni, hegesztet zártszelvények esetén gyártásból akár 2 hetes határidővel, egyedi
hosszakban is letudjuk gyártatni. Specialitásunk a vastag falú valamint az S355, S355J2H minőségek zártszelvények raktárról
történő beszerzése.
Méretválaszték: kiviteltől függően: 15×15 -500×500 mm
Szabványok: EN 10219-1, EN 10219-2, EN 10025, DIN 17100, DIN 2395
Minőségek: S/E235, S/E355, S/E275, S/E220
Hőkezeltségi álapotok:
Felületkezelés: horganyozás
Hosszak: 4-18 m
WELDED AND SEAMLESS HOLLOW SECTION
We offer our welded and seamless hollow sections mainle from stock with S235, S275, S355 qualitis with quick delivery
time. Of course we can purchase these hollow sections from fresh production as well but in this case the min. order
quantity is 24 tons, in case of welded hollow sections we can produce within 2 weeks delivery time even special, unique
lenghts. Our specialitis are the heawy wall, thick wall hollw sections and holow sections with S355, S355J2H qualitis from
stock.
Size assortment: 15×15 500×500 depends on standard and quality.
Standards: EN 10219-1, EN 10219-2, EN 10025, DIN 17100, DIN 2395
Qualities: S/E235, S/E355, S/E275, S/E220
Heat treatment:
Surface treatment: galvanisation
Lenghts: 4-18 m
The advantage of steel tubes for precision applications is the high precision of their manufacturing, the good quality of their surface, and the guaranteed mechanical and technological properties. That is why the pipes are widely used in the machining industry and in the automotive industry. Welded pipes for precision applications are manufactured in the process of cold drawing.
PN-EN10305-2 Delivery condition
| Designation | Symbol | Description |
| Cold drawn / hard | +C | Without thermal processing, after the process of cold drawing is finished |
| Cold drawn / soft | +LC | After final thermal processing, appropriate drawing |
| Cold drawn and annealed | +SR | After the final cold drawing process and annealing thermal processing in a controlled atmosphere |
| Annealed | +A | After the final cold drawing process, the pipes are annealed in a controlled atmosphere |
| Normalized | +N | After the final cold drawing process, the pipes are normalized in a controlled atmosphere |
Mechanical properties in room temperature
| Steel grade | Maximum values depending on the delivery condition | |||||||||||
| +C | +LC | +SR | +A | +N | ||||||||
| Steel symbol | RmMPa | A % | RmMPa | A % | RmMPa | ReHMpa | A % | RmMPa | A % | Rm MPa | ReHMpa | A % |
| E155 | 400 | 6 | 350 | 10 | 350 | 245 | 18 | 260 | 28 | 270 do 410 | 155 | 28 |
| E195 | 420 | 6 | 370 | 10 | 370 | 260 | 18 | 290 | 28 | 300 do 440 | 195 | 28 |
| E235 | 490 | 6 | 440 | 10 | 440 | 325 | 14 | 315 | 25 | 340 do 480 | 235 | 25 |
| E275 | 560 | 5 | 510 | 8 | 510 | 375 | 12 | 390 | 21 | 510 do 550 | 275 | 21 |
| E355 | 640 | 4 | 590 | 6 | 590 | 435 | 10 | 450 | 22 | 490 do 630 | 355 | 22 |
Chemical composition (ladle analysis)
| Steel grade | % of the mass | ||||
| Steel symbol | C max | Si max | Mn max | P max | S max |
| E155 | 0,11 | 0,35 | 0,70 | 0,025 | 0,025 |
| E195 | 0,15 | 0,35 | 0,70 | 0,025 | 0,025 |
| E235 | 0,17 | 0,35 | 1,20 | 0,025 | 0,025 |
| E275 | 0,21 | 0,35 | 1,40 | 0,025 | 0,025 |
| E355 | 0,22 | 0,35 | 1,60 | 0,025 | 0,025 |
Inspection and test list
| Inspection or test type | Test frequency | ||
| Internal tests | Acceptance test | ||
| Mandatory | Chemical analysis | M | M |
| Tensile testing | M | One per tested batch | |
| Dimension verification | M | M | |
| Visual inspection | M | M | |
| Optional | Flattening test or expansion test (option 18) | M | One per tested batch |
| Roughness testing | Not applicable | One per tested batch | |
| NDT of the weld in order to identify any longitudinal discontinuities | Not applicable | Individual | |
| NDT in order to detect any leaks | |||

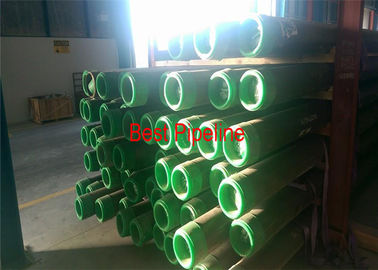

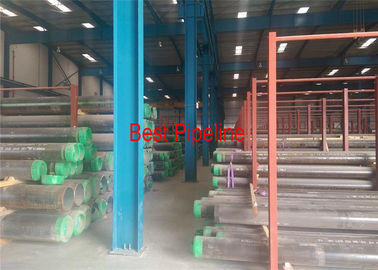

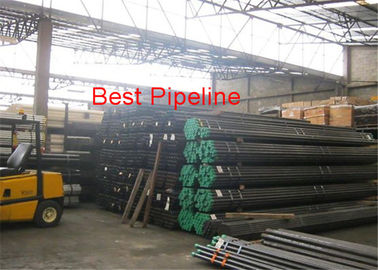

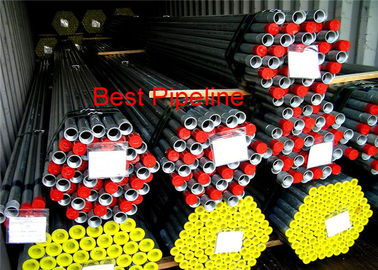

PN-EN 10305-2 Cold drawn steel tubes for precision applications Pictures
