SAWL P215NL P265NL ERW Steel Pipe , Black Welded Steel Pipe
| Place of Origin | China |
|---|---|
| Brand Name | Best |
| Certification | API /CE / ISO /TUV |
| Model Number | 1/2'' -48'' |
| Minimum Order Quantity | 1 TONS |
| Price | 450 USD/TON |
| Packaging Details | 1) In bundle with strip; 2) First packing by plastic bag then strip; Details packing please see the picture in the detial description. |
| Delivery Time | Shipped in 25 days after payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 100000 Ton/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | PN-EN 10217-6 | Grade | P215NL And P265NL |
|---|---|---|---|
| Technique | Welded Steel Tubes | Finish | SAWH |
| Keyword | SAWL (longitudinal Welding) | Inspection | With Hydraulic Testing |
| Surface | Barded /Painting/3PE | ||
| Highlight | erw steel line pipe,erw mild steel pipe |
||
Product Description
Production Information : PN-EN 10217-6 Welded steel tubes for pressure purposes; submerged arc welded non-alloy steel tubes with specified low temperature properties
·
Title:: PN-EN 10217-6
Welded steel tubes for pressure purposes – Technical delivery conditions -- Part 6: Submerged arc welded non-alloy steel tubes with specified low temperature properties
Scope of the standard:
The standard specifies the technical delivery conditions for circular submerged arc welded pipes with specified low temperature properties manufactured of non-alloy steels. It specifies the requirements for taking samples and the methods of testing.
Circular welded pipes manufactured of non-alloy steel with specified low temperature properties. / from 406,4 to 2540 mm /
Steel grades: P215NL and P265NL
Two testing categories are also distinguished in this case:
· TC1
· TC2
which differ with respect to the test type and, most of all, with the fact that ultrasound testing is introduced in the case of the TC2 group.
Pipe manufacturing stages and delivery conditions:
· Hot rolled or normalized sheets or strips, cold forming, SAW welding and normalization or without further thermal processing
forming with normalization, SAW welding without further thermal processing
| Mandatory tests | |
| for the TC1 category | for the TC2 category |
| Ladle analysis | |
| Tensile testing of the base material in room temperature | |
| Tensile testing of the weld in room temperature for D>=508 mm | |
| Resilience testing of the base material in low temperature | |
| Bend testing of the weld | |
| Resilience testing of the weld in low temperature | |
| Tightness testing | |
| Dimension verification | |
| NDT of the weld | |
| NDT of the base material in order to identify delamination | |
| NDT of pipe ends in order to identify delamination | |
| NDT of sheet edges and strips in order to identify delamination | |
| Additional tests | |
| Check analysis | |
| Wall thickness measurement at a distance from pipe ends | |

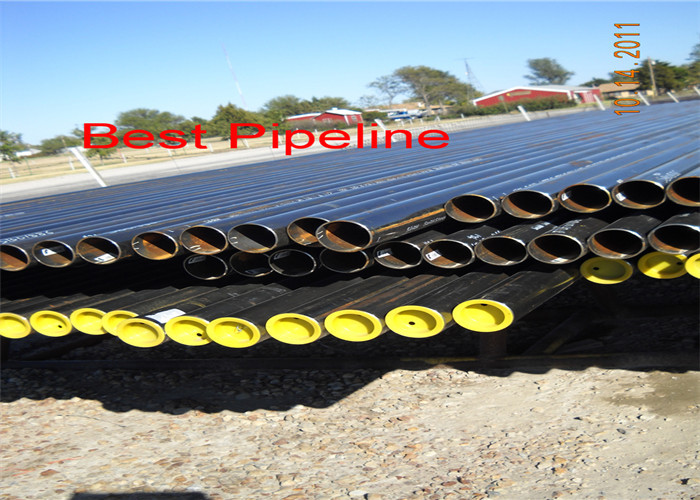

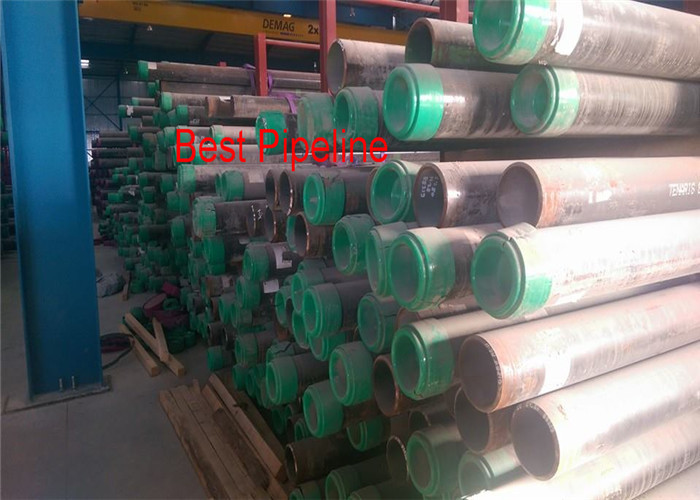

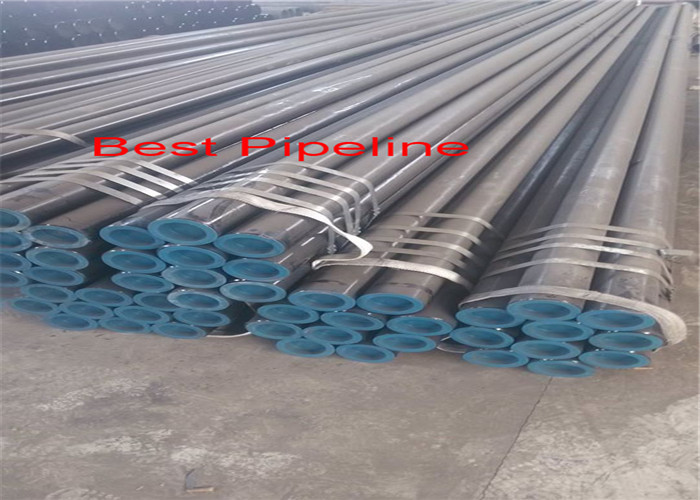

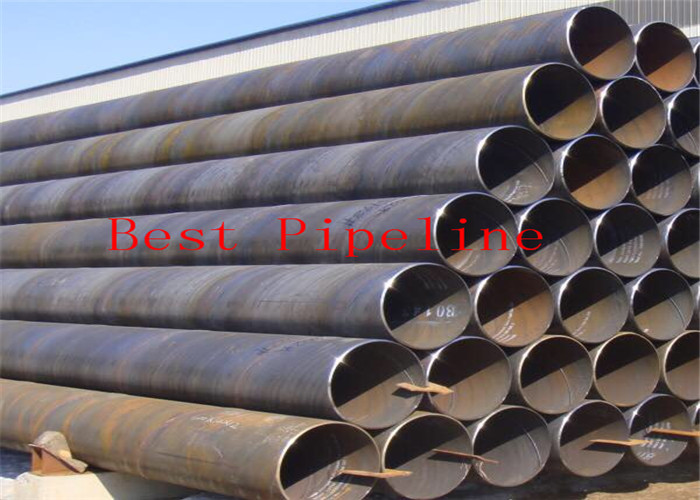

PN-EN 10217-6 Welded steel tubes pictures
