P265TR2 Room Temperature ERW Line Pipe , Welded High Pressure Seamless Pipe
| Place of Origin | China |
|---|---|
| Brand Name | Best |
| Certification | API /CE / ISO /TUV |
| Model Number | 1/2'' -48'' |
| Minimum Order Quantity | 1 TONS |
| Price | 450 USD/TON |

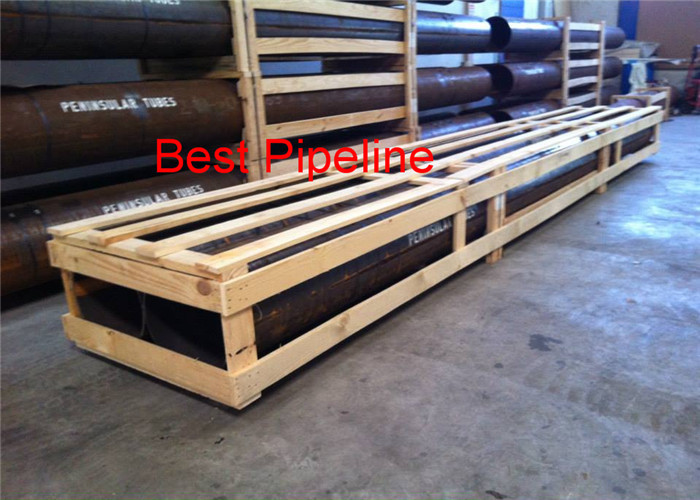

| Packaging Details | 1) In bundle with strip; 2) First packing by plastic bag then strip; Details packing please see the picture in the detial description. |
| Delivery Time | Shipped in 25 days after payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 100000 Ton/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | Welded Steel Tubes | Grade | PN-EN 10217-1 |
|---|---|---|---|
| Technique | P195TR1, P235TR1, P265TR2 P195TR2, P235TR2, P265TR2 | Finish | Bared |
| Keyword | Welded Steel Pipe/ Tubes | Inspection | With Hydraulic Testing |
| Surface | Barded /Painting/3PE | ||
| High Light | erw steel line pipe,erw mild steel pipe |
||
Product Description
Production Information : PN-EN 10217-1 Welded steel tubes for pressure purposes in room temperature – line pipes
The pipes are manufactured with the diameters between 17,2 – 2020 mm and with the wall thickness of up to 17,5 mm as spiral or longitudinal welded pipes. For pipes with larger diameters, it is permitted to construct them of more than one section (circumferential seam)
| Steel grades used | P195TR1, P235TR1, P265TR2 P195TR2, P235TR2, P265TR2 |
| Dimensions and tolerances | For the outside diameter D219,1 D +/-0,75 % or +/- 6 mm depending on which value is greater. The tolerances applied to wall thickness depend on the wall T For T5 +/-8 % or 2 mm (depending on which value is greater) |
| Pipe lengths | Pipes with precise lengths are manufactured with the following tolerance values: for D406,4- for pipes 0- 6m -0/+25%- for pipes 6-12m -0/+50%- for pipes longer than 12m -0/to be negotiated |
| Tightness | Pipes should be subject to water testing (7Mpa) or electromagnetic testing. |
| Straightness | < 0,0015 of pipe length (below 3mm per every meter of pipe length) |
| Tests | Mandatory tests: ladle analysis, tensile testing, transverse tensile testing of the weld > 508, tightness testing, dimension verification, visual inspection, NDT of the weld Optional tests: transverse tensile testing of the weld D= 219,1- 508, wall thickness measurement at a distance from pipe ends |

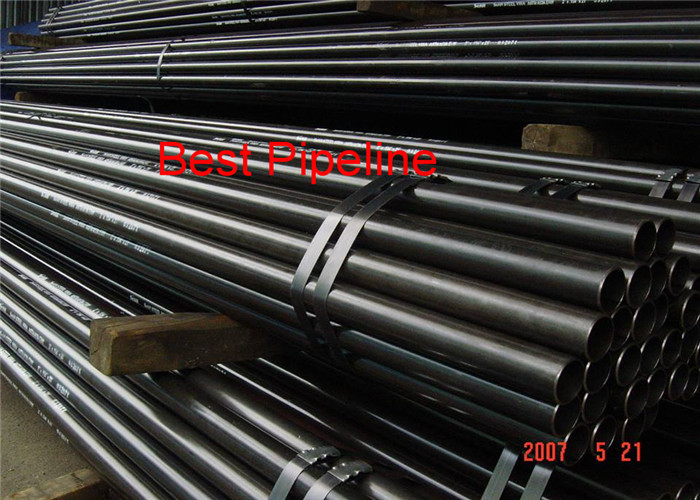

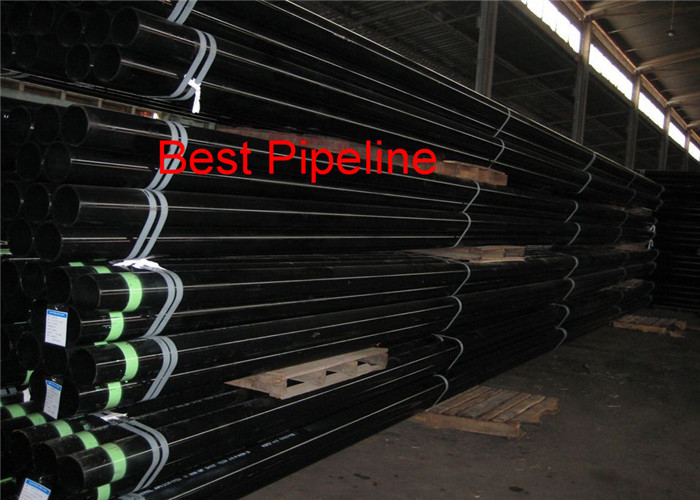

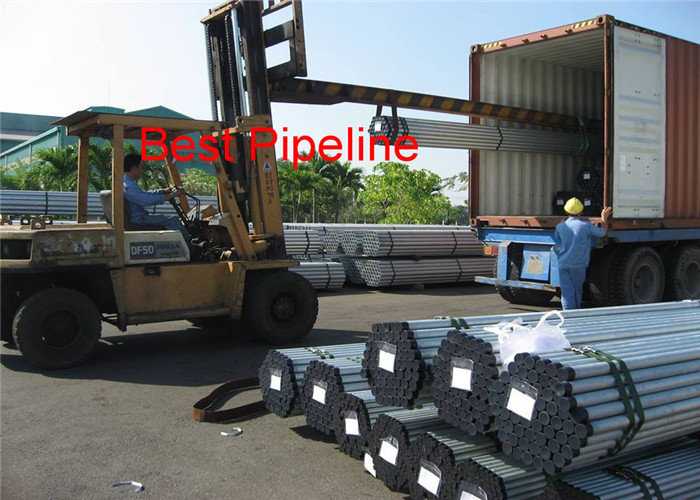

PN-EN 10217-1 Welded steel tubes Pictures
